零件裝配圖

RIGHT CRANKCASE COVER

CLUTCH HONDA CB 500 F ABS 2014

STARTING CLUTCH

CLUTCH Honda MOTO 500 CB 2014 CB500FAE

1

OUTER COMP., CLUTCH (69T)

22100-MGZ-J01 22100MGZJ01

聯繫我們

2

GUIDE, CLUTCH OUTER

22116-MGZ-J00 22116MGZJ00

聯繫我們

3

CENTER, CLUTCH (17T)

22120-MGZ-J01 22120MGZJ01

聯繫我們

4

SEAT, JUDDER SPRING

22125-KZZ-901 22125KZZ901

聯繫我們

5

DISK, CLUTCH FRICTION

22201-MGZ-J01 22201MGZJ01

聯繫我們

6

DISK B, CLUTCH FRICTION

22202-KZZ-901 22202KZZ901

聯繫我們

7

PLATE, CLUTCH

22321-MGZ-J01 22321MGZJ01

聯繫我們

8

PLATE B, CLUTCH

22322-MGZ-J01 22322MGZJ01

聯繫我們

9

PLATE, CLUTCH PRESSURE

22350-MGZ-J01 22350MGZJ01

10

PLATE, CLUTCH LIFTER

22361-MGZ-J00 22361MGZJ00

聯繫我們

11

ROD, CLUTCH CENTER

22366-MGZ-J00 22366MGZJ00

聯繫我們

12

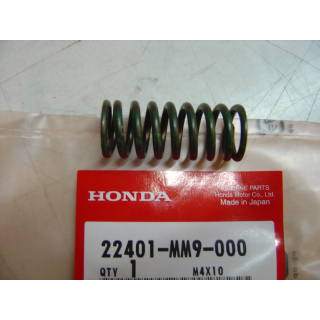

SPRING, CLUTCH

22401-MM9-000 22401MM9000

聯繫我們

13

SPRING, JUDDER

22402-KZZ-902 22402KZZ902

聯繫我們

14

ROD, CLUTCH LIFTER

22847-MFF-D00 22847MFFD00

聯繫我們

15

BOLT, FLANGE SPECIAL, 6X30

90007-MR1-000 90007MR1000

聯繫我們

16

NUT, LOCK, 18MM

90236-MGZ-J00 90236MGZJ00

17

WASHER, 18MM

90401-MZ8-B40 90401MZ8B40

聯繫我們

18

WASHER, LOCK

90432-428-000 90432428000

聯繫我們

19

WASHER, THRUST, 22MM

90452-MGZ-J01 90452MGZJ01

聯繫我們

20

--- ROULEMENT A AIGUILLES, 28X35X16(NTN)

91021-MGZ-J01 91021MGZJ01

聯繫我們

21

BEARING, RADIAL BALL, 6001

96100-6001000 961006001000

聯繫我們

请注意，出售的零件是制造商目录中的零件，我们有时必须专门从本田为您订购。有关交货时间的更多信息，请参阅运输和交货部分。

这些零件图表仅供参考，如果您有任何疑问，我们的专业人员将竭诚为您提供帮助和建议。

将零件添加到购物车时，请注意订购所需的数量。请注意，所示的单价仅是1个数量的价格。

我们的配件都是本田原装配件和全新配件可以确保质量和耐用性。如果您有任何疑问，我们随时为您提供帮助。请您放心订购。
