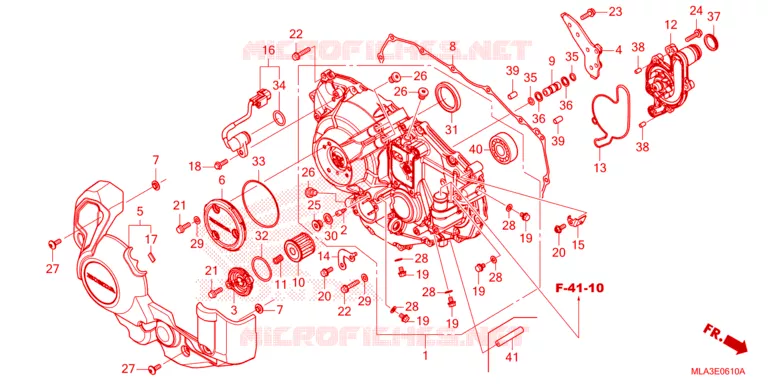

RIGHT CRANKCASE COVER (CMX1100D/D2) Honda MOTO 1100 REBEL 2023 CMX1100DP

1

COVER COMP., R. CRANKCASE

11330-MLA-A50 11330MLAA50

聯繫我們

2

ORIFICE

11335-MJP-G80 11335MJPG80

聯繫我們

3

COVER, OIL FILTER

11337-MLF-E70 11337MLFE70

聯繫我們

4

COVER, INNER *B183M*

11361-MJP-G80 11361MJPG80

聯繫我們

5

COVER ASSY., R. ENGINE SIDE *G167P* (WL)

11370-MLA-A60 11370MLAA60

聯繫我們

6

CAP, R. COVER

11375-MLA-A50 11375MLAA50

聯繫我們

7

COLLAR, 14.8MM

11385-MJF-A00 11385MJFA00

聯繫我們

8

--- JOINT DE COUVERCLE DE CARTERMOTEUR D.

11394-MJP-G51 11394MJPG51

聯繫我們

9

TUBE, OIL PASS

15104-MGS-D20 15104MGSD20

聯繫我們

10

ELEMENT, OIL FILTER

15412-MGS-D21 15412MGSD21

聯繫我們

11

SPRING, OIL FILTER

15414-MEB-670 15414MEB670

聯繫我們

12

PUMP COMP., WATER

19200-MJP-G50 19200MJPG50

聯繫我們

13

GASKET, WATER PUMP BODY

19226-MJP-G50 19226MJPG50

聯繫我們

14

STAY, HARNESS CLIP

32157-MJP-G80 32157MJPG80

聯繫我們

15

STAY, HARNESS CLIP

32158-MLA-A50 32158MLAA50

聯繫我們

16

SENSOR ASSY., ANGLE (40DEGREE)

38810-MLA-A51 38810MLAA51

聯繫我們

17

--- CAOUTCHOUC DE COUVERCLE DEGUIDON

53209-K0G-900 53209K0G900

聯繫我們

18

BOLT, KNOCK, 6MM

90011-MGE-D00 90011MGED00

聯繫我們

19

BOLT, FLANGE, 6X8 (S-NSHF)

90026-GHB-600 90026GHB600

聯繫我們

20

BOLT, FLANGE, 6X14 (S-NSHF)

90026-GHB-630 90026GHB630

聯繫我們

21

BOLT, FLANGE, 6X18 (S-NSHF)

90026-GHB-650 90026GHB650

聯繫我們

22

BOLT, FLANGE, 6X28 (S-NSHF)

90026-GHB-690 90026GHB690

聯繫我們

23

六角法兰面螺栓M6×20

95701-0602000

聯繫我們

24

BOLT, FLANGE, 6X25

90030-GHB-680 90030GHB680

聯繫我們

25

--- BOULON D'ETANCHEITE, 12X8

90031-MJP-G80 90031MJPG80

聯繫我們

26

BOLT, SPECIAL, 10MM

90042-MJP-G80 90042MJPG80

聯繫我們

27

BOLT, SOCKET SPECIAL, 6X17

90085-MLA-A00 90085MLAA00

聯繫我們

28

WASHER, SEALING, 6MM

90404-HW1-670 90404HW1670

聯繫我們

29

WASHER, SEALING, 6MM

90488-425-000 90488425000

聯繫我們

30

WASHER, 12MM

90545-KF0-000 90545KF0000

聯繫我們

31

--- ROULEMENT A BILLES RADIAL, 40X52X7

91004-MJP-G81 91004MJPG81

聯繫我們

32

O-RING, 39.8X2.2 (ARAI)

91302-PA9-003 91302PA9003

聯繫我們

33

O-RING, 81X2.2

91307-MGE-D01 91307MGED01

聯繫我們

34

O-RING, 16.5X2.5

91310-MGE-D01 91310MGED01

聯繫我們

35

O-RING, 7.7X1.9 (NOK)

91311-RFH-003 91311RFH003

聯繫我們

36

--- ANNEAU DE REFOULEMENT, 8X11

91315-MGS-D20 91315MGSD20

聯繫我們

37

SEAL, WATER PIPE, 22.5MM

91315-MJP-G51 91315MJPG51

聯繫我們

38

DOWEL PIN, 6X10

94301-06100 9430106100

聯繫我們

39

DOWEL PIN, 8X14

94301-08140 9430108140

聯繫我們

40

BEARING, RADIAL BALL, 6304

96100-6304000 961006304000

聯繫我們

41

TUBE, 3.5X50 (95005-35001-30M)

95005-3505030 950053505030

聯繫我們

请注意，出售的零件是制造商目录中的零件，我们有时必须专门从本田为您订购。有关交货时间的更多信息，请参阅运输和交货部分。

这些零件图表仅供参考，如果您有任何疑问，我们的专业人员将竭诚为您提供帮助和建议。

将零件添加到购物车时，请注意订购所需的数量。请注意，所示的单价仅是1个数量的价格。

我们的配件都是本田原装配件和全新配件可以确保质量和耐用性。如果您有任何疑问，我们随时为您提供帮助。请您放心订购。
